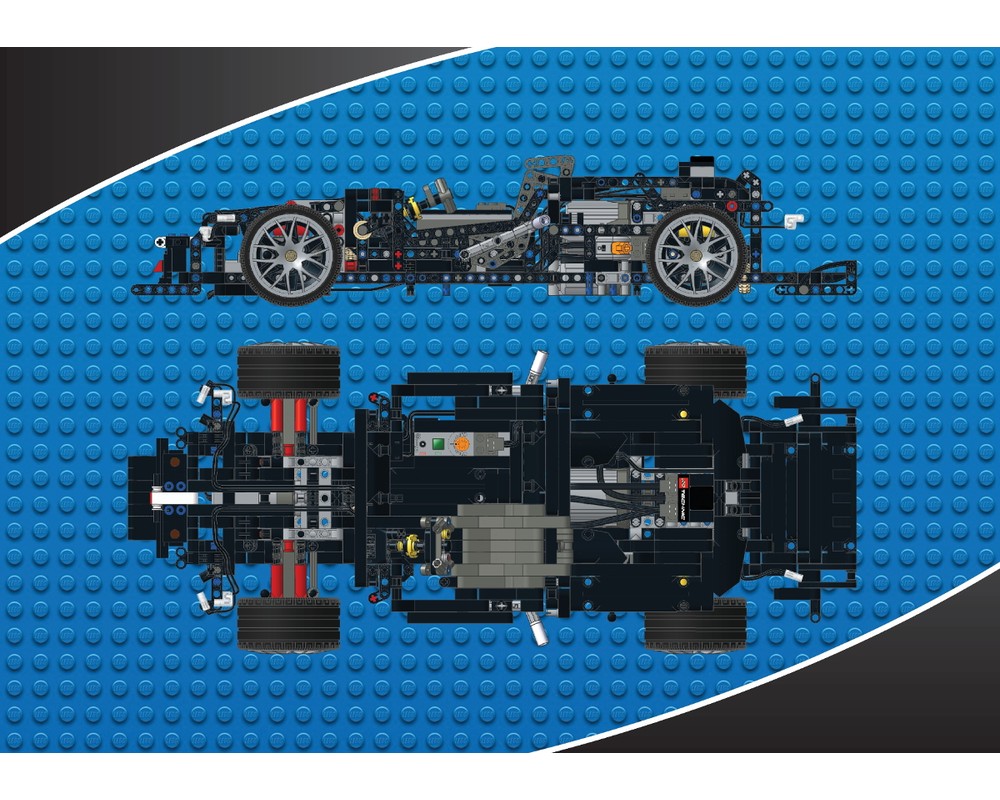

Mercedes-Benz AMG C63 DTM - remote PF chassis (only)

FOLLOWERS

1444

LIKES

Suitable for both liveries

"AMG":
https://rebrickable.com/mocs/MOC-6687/brunojj1/mercedes-benz-amg-c63-dtm-bodywork-amg-only/

or "Silberpfeil":
https://rebrickable.com/mocs/MOC-6688/brunojj1/mercedes-benz-amg-c63-dtm-bodywork-silberpfeil-only/

For those who want to build the chassis with V1 receiver (normal) - no problem, you only need a lower gear reduction.
http://www.eurobricks.com/forum/index.php?/forums/topic/147023-moc-mercedes-benz-amg-c63-dtm-manual-and-rc-in-110-scale/&do=findComment&comment=2749714


-         dimensionsin studs (L/W): 61/25

-         independent wheel suspension

-         remote driving and steering

-         LED lights

-         PF equipment: 1 XL motor + 1 L motor for drive, 1 servo motor for steering, 1 pole
           reverser, 3 LED pairs (2 front, 1 rear), 1 extension wire, 1 battery, 1 IR receiver, 1 IR remote

-         SBrick compatible (replaces receiver, remote and pole reverser)
Login to hide ads!

MOC-6686

Name Mercedes-Benz AMG C63 DTM - remote PF chassis (only)
Designer brunojj1
Designed 2017
Inventory 922 parts
Theme Technic > Model > Race

21 COMMENTS

  • 1 year, 6 months ago LegoSmack Level 10 MOC Designer
    Thanks a lot for the great RC chassis :)

    Did you updated the instructions with the replacement of the  32184 parts? I'm asking because the version I had downloaded some weeks ago still has the old instructions and some other minor issues:

    Page 59 Sub-Step 11 --> 1x Black Technic Beam 1x5 Thick missing
    Page 55 Step 64 -->  1x Black 2x2 Plate is to much --> doesn't fit and is not in inventory
  • 1 year, 10 months ago mrazjava Level 7
    Bruno - you make gorgeous mocs. If I'm willing to pay extra, would you be willing to design a new moc for a model of my choice? If so, what would be the price?
    • 1 year, 10 months ago brunojj1 Level 10 Designed this MOC
      In general I don´t build on commission because almost nobody is willing to pay a fair price to compensate all the carefull efforts. Anyway, you can contact me in private: [email protected] and we can continue the conversation that way. Thanks.
  • 2 years, 3 months ago Mysh Level 11
    Bruno, I am in love with your design choices.

    Do you think I may get a bit more speed if I run it on BuWizz?
    • 2 years, 3 months ago brunojj1 Level 10 Designed this MOC
      Thank you!

      Although I couldn´t test it yet, since my remote chassis is disassembled now, I´m definitely sure it would run excelently on BuWizz and get more speed in ludicrous mode. You don´t need the pole reverser and should run the motors on different channels, switched in opposite directions. I would appreciate if you could share your experience on EB then once finished.
  • 2 years, 12 months ago carpcrusader220 Level 10
    also 3x part no.32184 in dark bluish grey is missing from this parts list 🖒
    • 2 years, 12 months ago brunojj1 Level 10 Designed this MOC
      3x #32184 have been replaced by much cheaper 6x #6632, instructions updated. Sorry!
  • 2 years, 12 months ago carpcrusader220 Level 10
    just finished this rc chassis. error in instructions just so u know
    • 2 years, 12 months ago brunojj1 Level 10 Designed this MOC
      Thanks for the note! Please be more precise.
      • 2 years, 12 months ago carpcrusader220 Level 10
        Between steps 65 and 66, sub section step 11, 5L lift arm in black is missing on left hand side and does not appear again through out the rest of the chassis instructions 🖒
        • 2 years, 12 months ago brunojj1 Level 10 Designed this MOC
          Thanks for your help, will be updated asap!
          • 2 years, 12 months ago carpcrusader220 Level 10
            no problem 🖒this moc is a work of art.... i build all the bigger mocs on this site and this chassis is by far my favourite so far. ROCK SOLID and lightweight. cant wait to finish the body and have an amazing show piece. top work keep it up 😉
  • 2 years, 12 months ago psmyth Level 16
    Hi I just finished this MOC in anticipation to build the shell. This is your best work yet and I really liked the very good instructions. Perfect!!
    • 2 years, 12 months ago brunojj1 Level 10 Designed this MOC
      Good to know, thanks a lot for the feedback!
  • 2 years, 12 months ago asiadream Level 13
    Do you have any idea about alternative parts of 32495c01? It's quite rare and expensive now.
    • 2 years, 12 months ago brunojj1 Level 10 Designed this MOC
      I´m sorry - there are no alternative parts for this steering arm + hub. Using a substitute would mean redesigning the whole axle. All newer hubs require a 5 - stud high front axle. I didn´t realize how rare these parts have become while designing the model. In future I´ll try hard to use more common elements ;-)!
      • 2 years, 12 months ago asiadream Level 13
        Hi,
        Red or yellow suspensions perform the same function, right? I don't have the red ones and it's quite expensive too.
        • 2 years, 12 months ago brunojj1 Level 10 Designed this MOC
          Theoretically they are the same type of part, but I´ve noticed that the new red shocks are a bit harder, that´s why I used them in the front where their angle is flatter than at the rear. You can use the yellow ones too.
  • 3 years ago Kalps1811 Level 11
    Wow awesome moc I just finished building your Ferrari 458. Now both versions manual and rc will be on my build lists thanks for sharing
    Inventory shows 6 sets of PF lights should be 3
