Ford Mustang Shelby GT500 (Manual Version)

FOLLOWERS

1113

LIKES

The Mustang is one of the most famous cars in the world since 1964 with its first generation.
One year after the Mustang was released, Ford wanted a enhanced version of its car for run at the same level of its rivals in the US races. To design this car Ford hired the driver and car designer Carroll Shelby (1923-2012).

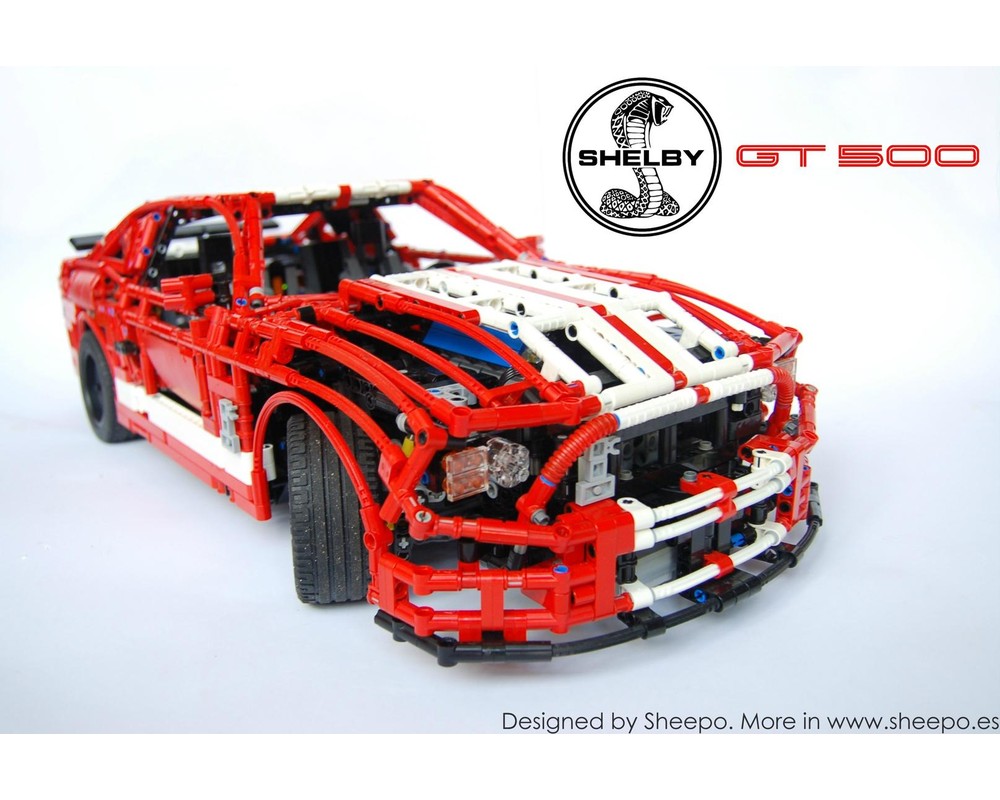

The first Mustang modified by Shelby was the GT350, released in 1965, and the next year(1966) Ford and Shelby showed the legendary Shelby GT500. The collaboration between Shelby and Ford continues today. And this is my interpretation of the current version of that historic collaboration.


This creation is made in scale 1:8.
The total size is: 75 studs of length, 29 wide and 21 of high (60x23x17 cm).
The weight is 2.6 kgs, with around 3600 parts.


5+R speeds manual gearbox.





The speeds ratio:
R - 2.08:1
1 -  1.67:1
2 -  1.25:1
3 -  1:1
4 -  1:1.33
5 -  1:1.67
V8 fake engine under the bonnet.



A complete bodywork with openable doors, bonnet and rear truck hood.  The bonnet can be opened from the interior using a little lever just front of the right seat. Also the doors have lock, you need turn the door handle to open it.

It has 4 full size seats and folding front seats.




It has a rear support to keep the rear axle lifted.

The suspension is based in the real one: front McPherson axle and a rear 4-links live axle. The front axle also has advanced geometry: Camber angle(2º), caster angle(3.5º) and kingpin angle(7º).




The steering has ackerman geometry and working steering wheel.

The car also has working disc brakes in all wheels, they are very powerfull and includes functional brake pedal.

Like the real one, this creation has unibody frame.  The roof is part of the frame too, it improve a lot the torsional stiffness.

You can disassemble the whole car in less than 3 minutes. But you will need a little bit more time to reassemble it again...
