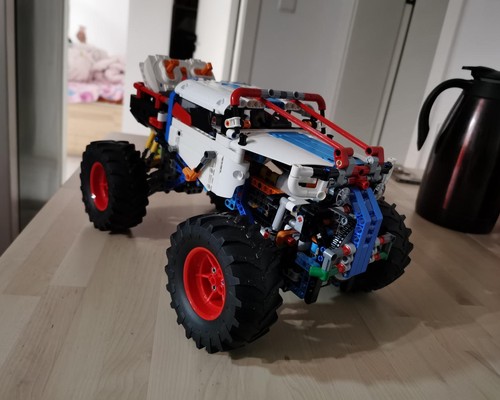

4x4 X-treme Off-Roader (42099) Power Functions base

FOLLOWERS

48

LIKES

This is a replacement for the Control+ base using Power Functions elements. It also uses the older hubs (instead of the new planetary ones), so the overall gearing has also been adjusted to compensate for the fact that the older hubs do not have internal gearing.
Otherwise I tried to stick as much as possible to the original design, although I did change a few colors here and there.

Because of the rear dual shock absorbers, a tiny modification to the frame is needed, which is also shown in the instructions.

You need a V2 IR receiver for it to work. WIth slight modifications, two V1 receivers could also be used though.




The rear upper suspension support arms are light bluish gray instead of dark bluish gray because unfortunately the 1x6 thin beam parts do not exist in that color. If you don't mind mixing the old & new shades you could use old dark gray (from 8002 or 8376). If you really want them in dark bluish gray, SEMBO 701800 Mobile Crane MK II has quite a few of them.
Login to hide ads!

MOC-28766

Name 4x4 X-treme Off-Roader (42099) Power Functions base
Designer olivierz
Designed 2019
Inventory 798
Theme Technic > Model > Off-Road
Modification of 42099-1 4x4 X-treme Off-Roader
Already have some of the parts? Use the Build this MOC page to only show the parts you are missing.
Create an account to change the default filters used.

Waiting for Inventory to load

42099-PF_2019-09-15_update.zip
Sept. 15, 2019, 3:01 p.m.
33.0 MB
42099-PF.zip
Aug. 31, 2019, 7 p.m.
33.0 MB
