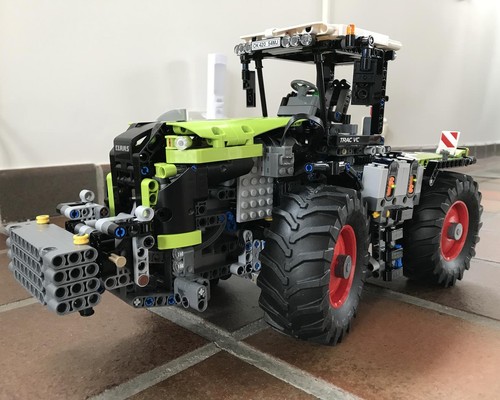

Another Claas Xerion 5000 Trac VC RC




Ok, so I was thinking a lot if I should submit this one or not, since there are several Xerion designs out there already and I don't feel like mine is significantly better (rather different), but maybe it will give some ideas to others.

I really wanted to have some of the features out of Efferman design combined with some of the mtucker13 ideas. In the end I also used some solutions from the official 42054.

As a result of the above and some creativity the functions are:
Drive is done by an XL motor.
Independant steering by two servos
Rear PTO, rear and front lifting hitch and cabin lifting by 4 medium motors
All is controlled by 2 sbricks
Since ther is one output left on the sbricks I'll probably add light in the future.

Unfortunately it did spoil the looks of it, but i will continue to work on improving it.

All comments are welcome.

Also big thanks to efferman and mtucker13 for sharing their designs, which were a huge inspiration.
Login to hide ads!


Name Another Claas Xerion 5000 Trac VC RC
Designer tstanczyk
Designed 2018
Inventory 1468 parts
Theme Technic > Model > Farm
Modification of 42054-1 CLAAS XERION 5000 TRAC VC
